Application
|
|
|

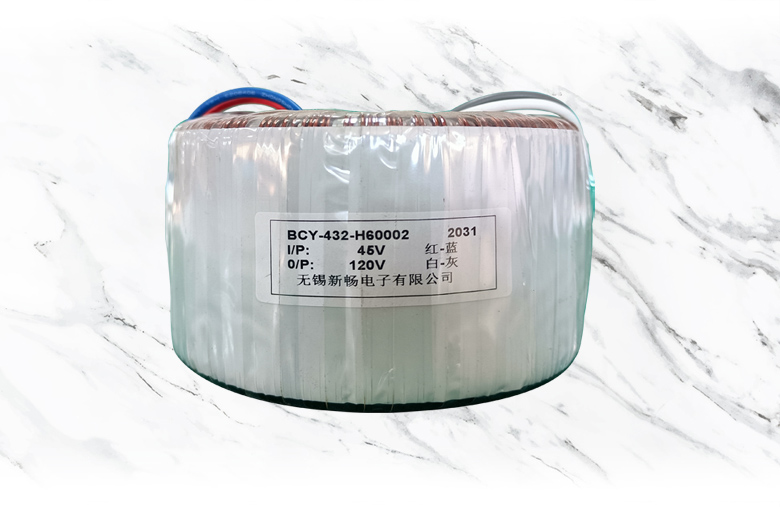

Toroidal transformers have the advantages of high efficiency,
small magnetic leakage, low temperature rise and easy to
install. The products are widely used in amplifier audio,
equipment, medical, instruments and lighting.
|
|
|
|
|
|
|
|
|
|
Details
|
|
¡¡ |
|
|
Parameter
|
|
|
¡¡ |
|
Note: The following table is the reference information for conventional toroidal transformers,
which can be designed and produced according to the drawings or parameter requirements.
|
|
Power
|
External Dimension(mm)
|
Installation Dimension(MM)
|
Weight(kg)
|
|
30w
|
82¡Á45
|
70¡Á70
|
0.9
|
|
50w
|
82¡Á45
|
70¡Á70
|
1.0
|
|
80w
|
95¡Á50
|
75¡Á75
|
1.5
|
|
100w
|
95¡Á55
|
85¡Á85
|
1.6
|
|
150W
|
108¡Á50
|
85¡Á85
|
2.0
|
|
200w
|
110¡Á60
|
95¡Á95
|
2.6
|
|
300w
|
120¡Á60
|
95¡Á95
|
3.0
|
|
350w
|
125¡Á65
|
105¡Á105
|
3.5
|
|
400w
|
125¡Á70
|
105¡Á105
|
4.0
|
|
500w
|
125¡Á75
|
105¡Á105
|
4.5
|
|
700w
|
130¡Á90
|
118¡Á118
|
6.0
|
|
800W
|
130¡Á90
|
118¡Á118
|
6.5
|
|
1000w
|
140¡Á90
|
125¡Á125
|
7.0
|
|
1500w
|
165¡Á120
|
130¡Á130
|
8.5
|
|
2000w
|
180¡Á120
|
140¡Á140
|
10
|
|
3000w
|
200¡Á150
|
185¡Á185
|
15
|
|
4000w
|
230¡Á150
|
185¡Á185
|
20
|
|
5000w
|
230¡Á150
|
185¡Á185
|
25
|
|
|
¡¡ |
|
|
